How Can Prototyping Manufacturing Revolutionize Your Product Development?



1. Introduction to Prototyping Manufacturing

1.1 What is Prototyping Manufacturing?

Prototyping manufacturing, a pivotal process in modern product development, refers to the creation of physical or digital product models using advanced technologies like 3D printing, CNC machining, and rapid tooling. It serves as a bridge between abstract design concepts and large - scale production, enabling the early validation of a product's functionality, ergonomics, and manufacturability.

For instance, in the automotive industry, before mass - producing a new car model, manufacturers first create prototypes. These prototypes are used to test various aspects such as the aerodynamics of the car's body (by measuring wind resistance in a wind tunnel), the functionality of the engine and transmission systems, and the comfort and usability of the interior for the driver and passengers.

2. Core Technologies Driving Prototyping Manufacturing

2.1 Additive Manufacturing (3D Printing)

Additive manufacturing, more commonly known as 3D printing, has emerged as a game - changer in prototyping manufacturing.

Process: At its core, 3D printing is a layer - by - layer material deposition process. It begins with a digital 3D model created using computer - aided design (CAD) software. This model is then sliced into thin cross - sectional layers by specialized software. The 3D printer reads these slices and deposits materials, such as plastics, metals, or composites, layer upon layer until the final three - dimensional object is formed. For example, in fused deposition modeling (FDM), one of the most popular 3D printing techniques, a thermoplastic filament is melted and extruded through a nozzle. The nozzle moves in precise patterns, depositing the molten plastic in layers, which cool and solidify to form the structure. Another technique, selective laser sintering (SLS), uses a high - power laser to sinter powdered materials, such as nylon or metal powders. The laser selectively fuses the powder particles together in each layer, gradually building up the object.

Materials: A wide range of materials can be used in 3D printing. Plastics like acrylonitrile butadiene styrene (ABS), polylactic acid (PLA), and polycarbonate (PC) are commonly used due to their relatively low cost, ease of use, and good mechanical properties. ABS is known for its strength and durability, making it suitable for applications where the prototype needs to withstand some stress, such as in automotive or consumer electronics prototypes. PLA, on the other hand, is a biodegradable plastic, making it an environmentally friendly choice, often used in educational or art - related prototyping.

Metals such as aluminum, titanium, and stainless steel are also being increasingly used in 3D printing, especially in industries like aerospace and medical. Titanium, for example, is highly valued in aerospace applications for its high strength - to - weight ratio. 3D printing allows for the creation of complex titanium parts with internal structures that are difficult to achieve through traditional manufacturing methods. Composites, which combine two or more materials to achieve enhanced properties, are also making their way into 3D printing. These can include combinations of plastics with carbon fibers or glass fibers to increase strength and stiffness. Additionally, biocompatible materials are being developed for 3D printing in the medical field, such as materials used to create custom - fit prosthetics or tissue engineering scaffolds.

Advantages: One of the most significant advantages of 3D printing in prototyping is rapid iteration. Design changes can be made quickly in the digital model, and a new prototype can be printed in a relatively short time. This allows designers and engineers to test multiple design concepts and make improvements rapidly, reducing the overall product development time. For example, a startup developing a new smartphone accessory can quickly print different prototypes of the design, test them for functionality and user - friendliness, and make design adjustments within a matter of days.

3D printing also generates minimal waste compared to traditional manufacturing methods. Since the material is added layer by layer only where it is needed, there is far less material waste compared to subtractive manufacturing processes like CNC machining, which remove large amounts of material from a solid block.

Moreover, 3D printing offers unparalleled design freedom. Complex geometries, such as internal channels, lattice structures, and organic - shaped components, can be easily created. These complex designs can lead to improved product performance. For instance, in the design of heat sinks for electronic devices, 3D - printed lattice structures can provide enhanced heat dissipation while reducing the weight of the component.

2.2 Subtractive Manufacturing (CNC Machining)

Subtractive manufacturing, with CNC machining being a prominent example, has long been a staple in the manufacturing industry and continues to play a crucial role in prototyping.

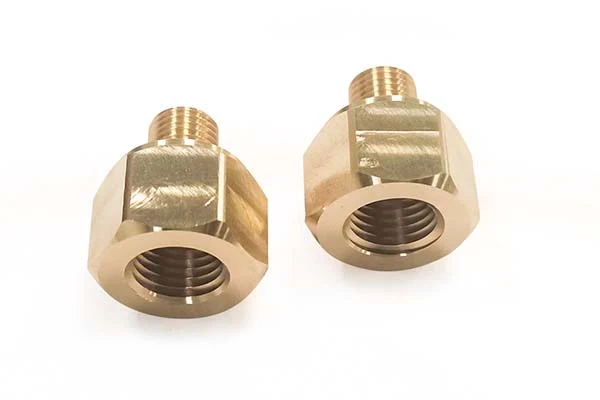

Process: CNC machining is a precise material removal process. It starts with a solid block of raw material, which can be metal, wood, or a high - strength polymer. Pre - programmed computer software controls the movement of various cutting tools, such as mills, lathes, and drills. These tools remove material from the workpiece in a highly precise manner according to the digital design specifications. For example, in a milling operation, a rotating cutting tool with multiple teeth moves along different axes (X, Y, and Z in a 3 - axis CNC machine) to remove material from the surface of the workpiece, gradually shaping it into the desired form. In a lathe operation, the workpiece rotates while a cutting tool moves in a controlled manner to create cylindrical or conical shapes, such as shafts or bushings.

Materials: Metals are a primary choice for CNC machining in prototyping, especially when high strength and durability are required. Aluminum is widely used due to its relatively low density, high strength - to - weight ratio, and good machinability. It is often used in aerospace and automotive prototypes for components like engine parts and structural components. Steel, including stainless steel, is also popular for its high strength and corrosion resistance. Stainless steel is commonly used in prototypes for medical devices, food processing equipment, and marine applications.

Wood is another material used in CNC machining, particularly for creating prototypes of furniture, decorative items, or artistic pieces. High - strength polymers such as polyetheretherketone (PEEK) are also suitable for CNC machining. PEEK is valued for its excellent mechanical properties, high - temperature resistance, and chemical resistance, making it useful in prototyping components for industries like aerospace, automotive, and oil and gas.

Advantages: The precision of CNC machining is one of its greatest strengths. It can achieve tolerances as tight as ±0.01mm, which is crucial for creating functional prototypes, especially in industries where exact dimensions are critical, such as aerospace and medical device manufacturing. For example, in the production of a prototype for a surgical instrument, the precise dimensions ensured by CNC machining are essential for the instrument's proper function and safety.

CNC - machined prototypes also offer high durability. The solid - state nature of the raw materials and the precision of the machining process result in components that can withstand significant mechanical stress and environmental conditions. This makes them suitable for testing in real - world scenarios, allowing engineers to accurately assess the performance of the prototype under various operating conditions.
